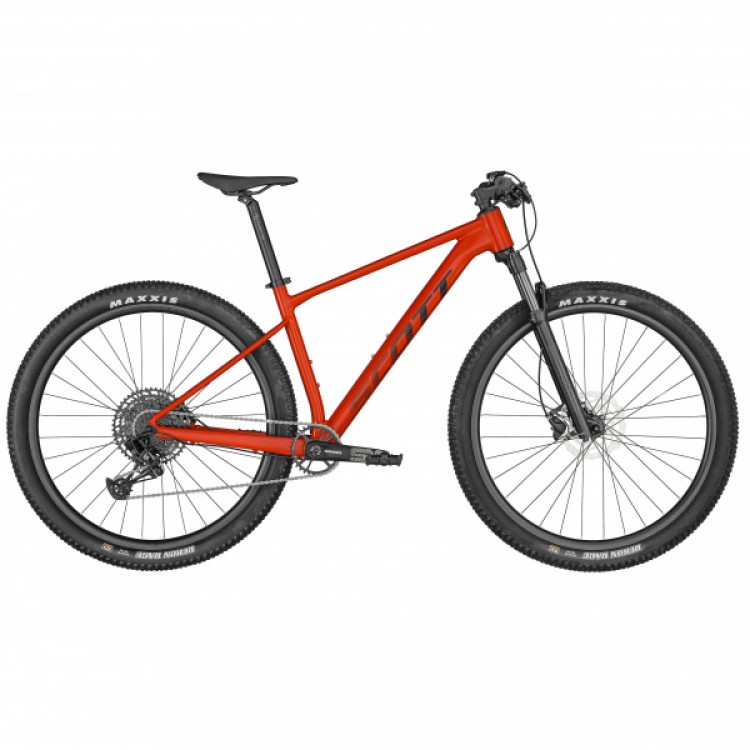

Scott Scale 970 M red 2023
- Výrobca: Scott
- Kód produktu: 290187008_2
- Dostupnosť: Skladom
- 1,499.00€
-
1,079.00€
- Bez DPH: 899.17€
Služby a akcie k tomuto produktu
ŠPECIFIKÁCIA
Rám |
Scale Alloy 6061 Custom Butted Tubing Syncros Cable Integration System / Tapered Headtube BB92 / QR 5x141mm with 55mm Chainline |
Vidlica |
RockShox Judy Silver TK Solo Air 46mm offset / Tapered Steerer / Reb. Adj. Lockout / 100mm travel, RockShox PopLoc Remote |
Hlavové zloženie |
Syncros - Acros OE Cable Routing HS System OD 50/62mm / ID 42/56mm |
Prehadzovačka |
SRAM NX Eagle 12 Speed |
Prešmyk |
|
Radenie |
SRAM SX Eagle Trigger |
Brzdy |
Shimano MT200 DiscBrake, Disc CL 180/160mm |
Kľuky |
SRAM SX Eagle DUB 55mm CL / 32T |
Stredové zloženie |
SRAM DUB PF 92 MTB Wide / shell 41x92mm |
Riadidlá |
Syncros Alloy 6061 T shape Flat / 9° / 740mm Syncros Performance XC grips |
Predstavec |
Syncros Alloy 6061 oversized 31.8mm / 1 1/8" / 6° angle |
Sedlovka |
Syncros / 31.6x400mm |
Sedlo |
yncros Belcarra Regular 2.5 |
Reťaz |
SRAM CN SX Eagle |
Kazeta |
SRAM SX-PG1210 / 11-50 T |
Kolesá |
Formula CL-51, Formula CL-2241 / QR 5x141mm, Syncros X-27 / 32H / 27mm |
Plášte |
Maxxis Rekon Race / 29x2.4" / 60TPI |
Hmotnosť v kg |
13,5 kg |
S / 900 | M / 900 | L / 900 | XL / 900 | XXL | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | HEAD TUBE ANGLE | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° | |||||||||||||
B | HEAD TUBE LENGTH | 90.0 MM | 100.0 MM | 110.0 MM | 120.0 MM | 120.0 MM | |||||||||||||
C | TOP TUBE HORIZONTAL | 580.0 MM | 605.0 MM | 630.0 MM | 660.0 MM | 680.0 MM | |||||||||||||
D | STANDOVER HEIGHT | 755.0 MM | 786.0 MM | 805.0 MM | 835.0 MM | 870.0 MM | |||||||||||||
E | BB OFFSET | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | |||||||||||||
F | BB HEIGHT | 315.0 MM | 315.0 MM | 315.0 MM | 315.0 MM | 315.0 MM | |||||||||||||
G | WHEEL BASE | 1,111.8 MM | 1,138.2 MM | 1,164.6 MM | 1,195.9 MM | 1,215.9 MM | |||||||||||||
H | BB CENTER TO TOPTUBE CENTER | ||||||||||||||||||
I | BB CENTER TO TOP OF SEATTUBE | 390.0 MM | 440.0 MM | 480.0 MM | 530.0 MM | 580.0 MM | |||||||||||||
J | SEAT ANGLE | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | |||||||||||||
K | CHAINSTAY | 425.0 MM | 425.0 MM | 425.0 MM | 425.0 MM | 425.0 MM | |||||||||||||
L | REACH | 420.3 MM | 442.8 MM | 463.3 MM | 492.9 MM | 512.9 MM | |||||||||||||
M | STACK | 596.1 MM | 605.3 MM | 614.6 MM | 623.8 MM | 623.8 MM | |||||||||||||
N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM | 80.0 MM | |||||||||||||
0 | TRAIL | 112.6 MM | 112.6 MM | 112.6 MM | 112.6 MM | 112.6 MM |
