Scott Scale JR 20 blue 2023
- Výrobca: Scott
- Kód produktu: 290747222_2
- Dostupnosť: Dočasne nedostupné
- 479.00€
-
399.00€
- Bez DPH: 324.39€
Služby a akcie k tomuto produktu
ŠPECIFIKÁCIA
|
Rám |
Scale 20 Junior Alloy 6061 / Semi int. HT SCOTT dropout / V-Brake |
|
Vidlica |
SR Suntour XCT-JR 20 40mm travel Softer spring setup |
|
Hlavové zloženie |
Feimin FP-H807 1 1/8" Semi Int. |
|
Prehadzovačka |
Shimano RD-TY300 7 Speed |
|
Prešmyk |
|
|
Radenie |
Shimano SL-RV300-7 Revo Shifter |
|
Brzdy |
Tektro Junior JL-510 TS / RS Tektro V-Brakes Kids' specific |
|
Kľuky |
Prowheel / Alloy Crank 127mm 36T / w/CG PVG double cover |
|
Stredové zloženie |
Feimin / BB68 / cartridge / square taper |
|
Riadidlá |
Kids riser bar alloy 540mm / 20mm Rise Syncros Grips Kids100/80 |
|
Predstavec |
Alloy 50mm / +10° / 25.4mm clamp |
|
Sedlovka |
Alloy / 26.8mm / 250mm |
|
Sedlo |
Syncros Future Pro |
|
Reťaz |
KMC Z7 |
|
Kazeta |
SunRace MFM300 7 Speed / 13-34T |
|
Kolesá |
JKT-122F / Nutted, JKT-122R / Nutted, Shining V-6NS |
|
Plášte |
Kenda K1227 Booster / 20x2.2" / 30TPI |
|
Hmotnosť v kg |
10,60 kg |

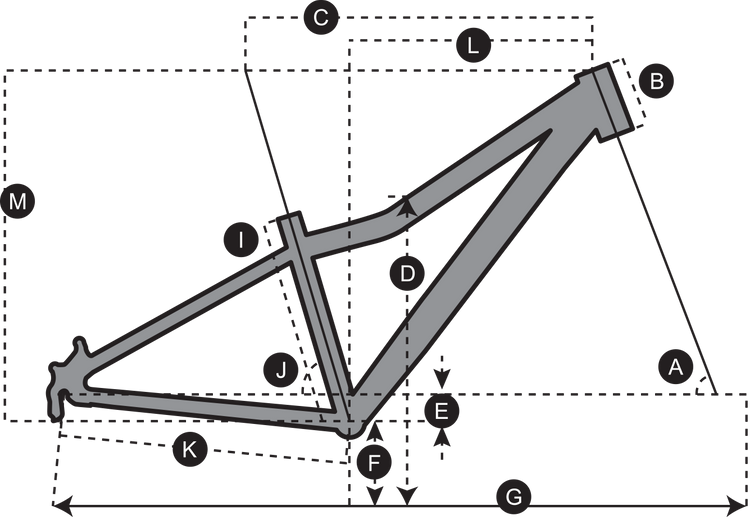

| 20" | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 69.0 ° | |||||||||||||||||
| B | HEAD TUBE LENGTH | 100.0 MM | |||||||||||||||||
| C | TOP TUBE HORIZONTAL | 450.0 MM | |||||||||||||||||
| D | STANDOVER HEIGHT | 509.9 MM | |||||||||||||||||
| E | BB OFFSET | ||||||||||||||||||
| F | BB HEIGHT | ||||||||||||||||||
| G | WHEEL BASE | 892.1 MM | |||||||||||||||||
| H | BB CENTER TO TOPTUBE CENTER | ||||||||||||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 280.0 MM | |||||||||||||||||
| J | SEAT ANGLE | 70.4 ° | |||||||||||||||||
| K | CHAINSTAY | 370.0 MM | |||||||||||||||||
| L | REACH | ||||||||||||||||||
| M | STACK | ||||||||||||||||||
| N | STEM LENGTH | 50.0 MM | |||||||||||||||||
| 0 | TRAIL | ||||||||||||||||||
