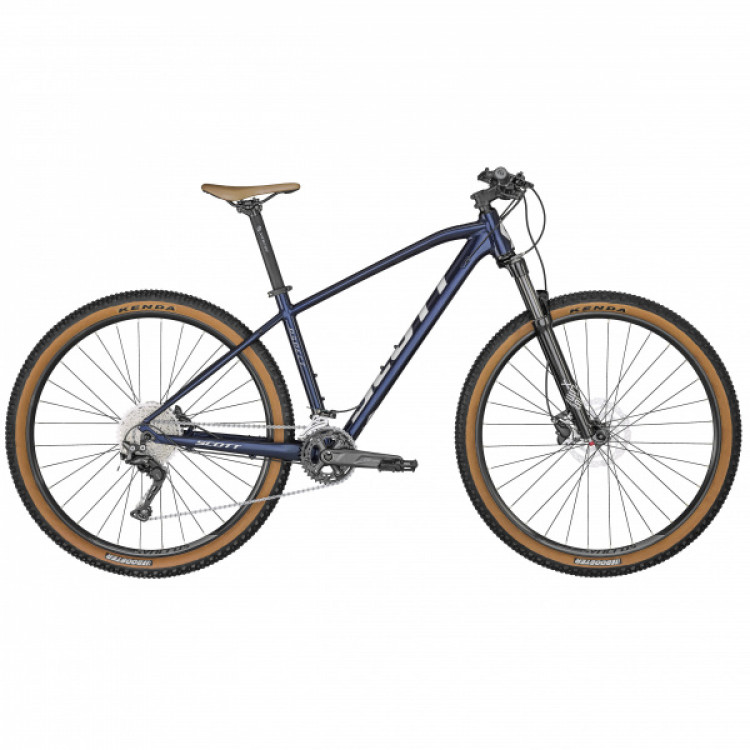

Scott Aspect 920 L 2024
- Výrobca: Scott
- Kód produktu: 290199010_2
- Dostupnosť: Dočasne nedostupné
ŠPECIFIKÁCIA
|
Rám |
Aspect 900 series / Alloy 6061 Custom Butted Tubing, BSA73 / Internal Cable Routing / replaceable hanger |
|
Vidlica |
Suntour XCR32/X1-RL-R, Remote Lockout / Reb. Adj., 100mm travel |
|
Hlavové zloženie |
Syncros OE Press Fit / Reduce 1.5"-1 1/8" OD 50/62mm / ID 44/56mm |
|
Prehadzovačka |
Shimano Deore RD-M5120 SGS Shadow Type / 22 Speed |
|
Prešmyk |
Shimano Deore FD-M5100 Side Swing / 31.8mm |
|
Radenie |
Shimano Deore SL-M5100 R-plus / 2 way release |
|
Brzdy |
Shimano MT200 / Hydr. Disc Brakes, Shimano SM-RT10 CL 180/160mm |
|
Kľuky |
Shimano FC-M5100-B2 2-piece Design / 36X26 |
|
Stredové zloženie |
Shimano BB-MT500-PA |
|
Riadidlá |
Syncros 3.0 / 720mm black / 31.8mm / 12mm rise / 9° BS Syncros Comfort Lock-on Grip |
|
Predstavec |
Syncros 3.0 / 7° / Black |
|
Sedlovka |
Syncros 3.0 31.6mm / 350mm / Black |
|
Sedlo |
Syncros 3.0 |
|
Reťaz |
KMC X11 |
|
Kazeta |
Shimano CS-M5100-11 / 11-42T |
|
Kolesá |
Formula CL51, Formula CL2241 / 141QR, Syncros X-20 Disc, 32H / black |
|
Plášte |
Kenda Booster / 29x2,4“ / 30 TPI |
|
Hmotnosť v kg |
13,90 kg |
| XS | S | M | L | XL | XXL | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | ||||||||||||
| B | HEAD TUBE LENGTH | 95.0 MM | 100.0 MM | 110.0 MM | 120.0 MM | 135.0 MM | 150.0 MM | ||||||||||||
| C | TOP TUBE HORIZONTAL | 560.0 MM | 585.0 MM | 600.0 MM | 615.0 MM | 635.0 MM | 655.0 MM | ||||||||||||
| D | STANDOVER HEIGHT | 743.0 MM | 771.0 MM | 783.0 MM | 821.0 MM | 857.0 MM | 891.0 MM | ||||||||||||
| E | BB OFFSET | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | ||||||||||||
| F | BB HEIGHT | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | ||||||||||||
| G | WHEEL BASE | 1,102.0 MM | 1,090.0 MM | 1,102.0 MM | 1,123.0 MM | 1,144.0 MM | 1,164.0 MM | ||||||||||||
| H | BB CENTER TO TOPTUBE CENTER | 309.0 MM | 349.0 MM | 394.0 MM | 434.0 MM | 484.0 MM | 534.0 MM | ||||||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 355.0 MM | 395.0 MM | 440.0 MM | 480.0 MM | 530.0 MM | 580.0 MM | ||||||||||||
| J | SEAT ANGLE | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | ||||||||||||
| K | CHAINSTAY | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | ||||||||||||
| L | REACH | 388.0 MM | 406.0 MM | 419.0 MM | 431.0 MM | 447.0 MM | 463.0 MM | ||||||||||||
| M | STACK | 580.0 MM | 603.0 MM | 612.0 MM | 622.0 MM | 636.0 MM | 649.0 MM | ||||||||||||
| N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM | 90.0 MM | 100.0 MM | ||||||||||||
