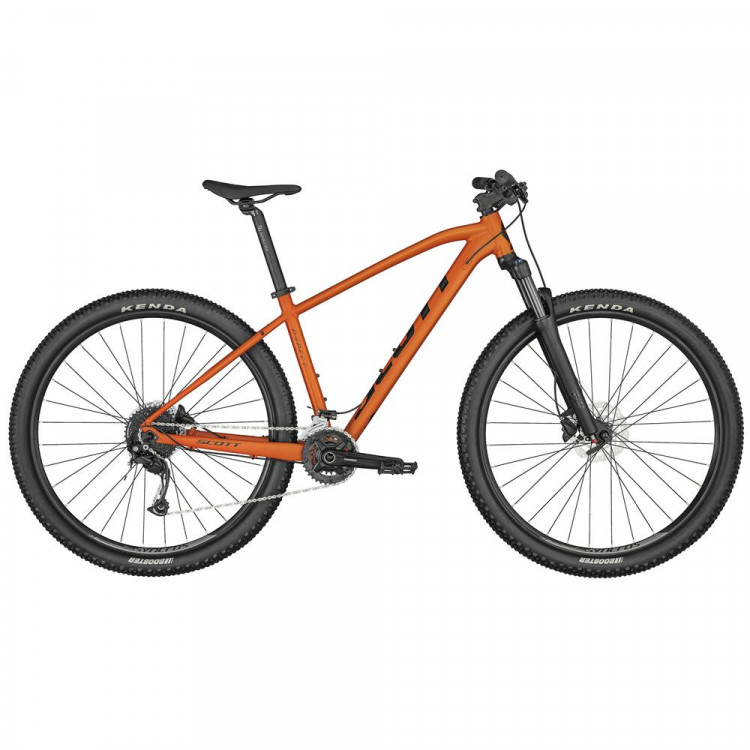

Scott Aspect 760 S orange 2024
- Výrobca: Scott
- Kód produktu: 3228_p
- Dostupnosť: Skladom
- 599.00€
-
449.00€
- Bez DPH: 374.17€
Služby a akcie k tomuto produktu
ŠPECIFIKÁCIA
Rám |
Aspect 900-700 series / Alloy 6061 Custom Tubing BSA73 / Internal Cable Routing / replaceable hanger |
Vidlica |
Suntour XCE28 100mm travel |
Hlavové zloženie |
Syncros OE Press Fit / 1 1/8" OD 50mm / ID 44mm |
Prehadzovačka |
Shimano Tourney RD-TX800 16 Speed |
Prešmyk |
Shimano FD-M315-TS / 31.8mm |
Radenie |
Shimano SL-M315 R-fire plus / 2 way release w/gear indicator |
Brzdy |
Tektro HDM275 Hydr. Disc, Tektro / 6 bolt / F&R 160mm |
Kľuky |
Prowheel TM-CY01 36X22 w/CG |
Stredové zloženie |
Feimin FP.B908N BB73 / square taper |
Riadidlá |
AHL MTB-AL-312BT / 720mm / black / 12mm rise Syncros Pro Grip |
Predstavec |
TDS-C301-8FOV / 10° / 31.8 / Black |
Sedlovka |
AHL SP C207 31.6mm / 350mm / Black |
Sedlo |
Syncros 3.0 |
Reťaz |
KMC Z-8.3 |
Kazeta |
Sunrace CSM55 8AV / 11-34T |
Kolesá |
Formula DC-19 FQR Disc, Formula DC-25 8s RQR Disc, Syncros X-20 Disc 32H / black |
Plášte |
Kenda Booster 27,5x2.4" / 30TPI |
Hmotnosť v kg |
14,50 kg |
XS | S | M | L | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | HEAD TUBE ANGLE | 68.0 ° | 68.0 ° | 68.0 ° | 68.0 ° | ||||||||||||||
B | HEAD TUBE LENGTH | 95.0 MM | 100.0 MM | 110.0 MM | 120.0 MM | ||||||||||||||
C | TOP TUBE HORIZONTAL | 560.0 MM | 585.0 MM | 600.0 MM | 615.0 MM | ||||||||||||||
D | STANDOVER HEIGHT | 720.0 MM | 745.0 MM | 776.0 MM | 799.0 MM | ||||||||||||||
E | BB OFFSET | -44.0 MM | -44.0 MM | -44.0 MM | -44.0 MM | ||||||||||||||
F | BB HEIGHT | 308.5 MM | 308.5 MM | 308.5 MM | 308.5 MM | ||||||||||||||
G | WHEEL BASE | 1,087.0 MM | 1,115.0 MM | 1,131.0 MM | 1,147.0 MM | ||||||||||||||
H | BB CENTER TO TOPTUBE CENTER | 314.0 MM | 344.0 MM | 389.0 MM | 429.0 MM | ||||||||||||||
I | BB CENTER TO TOP OF SEATTUBE | 355.0 MM | 395.0 MM | 440.0 MM | 480.0 MM | ||||||||||||||
J | SEAT ANGLE | 74.0 ° | 74.0 ° | 74.0 ° | 74.0 ° | ||||||||||||||
K | CHAINSTAY | 435.0 MM | 435.0 MM | 435.0 MM | 435.0 MM | ||||||||||||||
L | REACH | 402.0 MM | 420.0 MM | 432.0 MM | 445.0 MM | ||||||||||||||
M | STACK | 552.0 MM | 575.0 MM | 584.0 MM | 594.0 MM | ||||||||||||||
N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM |
