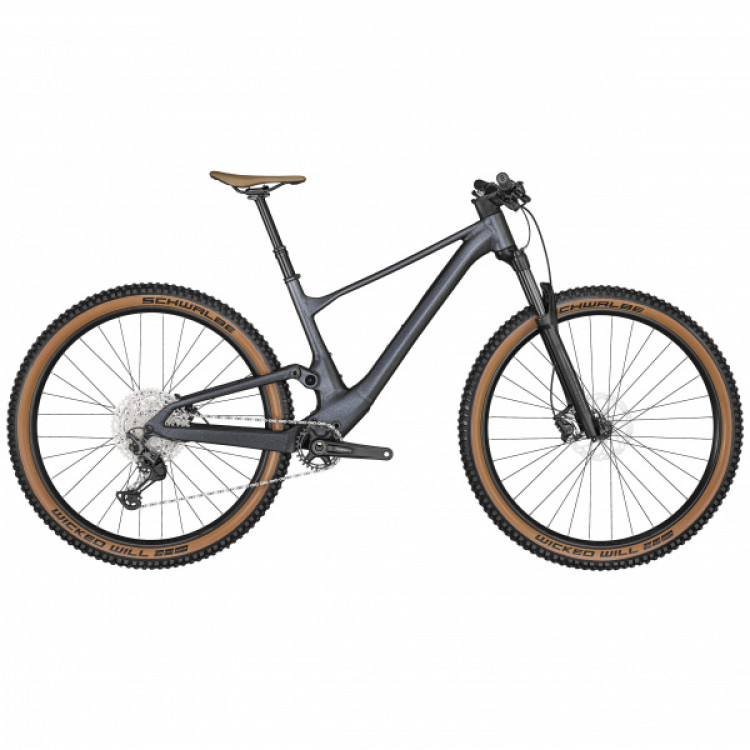

Scott Spark 960 M black 2024
- Výrobca: Scott
- Kód produktu: 290131008_2
- Dostupnosť: Skladom
ŠPECIFIKÁCIA
|
Rám |
Spark Alloy SL 6011 Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline |
|
Vidlica |
RockShox Judy Silver TK Solo Air 15x110mm QR axle / 42mm offset / Tapered Steerer 2-Modes / Reb. Adj. / Lockout / 130mm travel |
|
Tlmič |
Fusion NUDE 5 RLX Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Reb. Adj. Travel 120-80-Lockout / T165X45mm |
|
Hlavové zloženie |
Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
|
Prehadzovačka |
Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed |
|
Radenie |
Shimano Deore SL-M6100-R / Rapidfire Plus |
|
Brzdy |
Shimano MT501 Disc, Shimano SM-RT54 CL / F&R 180mm |
|
Kľuky |
Shimano FC-MT512-1 55mm CL / 32T |
|
Stredové zloženie |
Shimano BB-MT500 / shell 41x92mm |
|
Riadidlá |
Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm Syncros Pro lock-on grips |
|
Predstavec |
Syncros DC 3.0 Syncros Cable Integration System 0° rise / 6061 Alloy / 31.8mm / 1 1/8" |
|
Sedlovka |
Syncros Duncan Dropper Post 2.5 31.6mm / S & M size 125mm / L & XL size 150mm |
|
Sedlo |
Syncros Tofino 2.5 Regular |
|
Reťaz |
KMC X12 |
|
Kazeta |
Shimano Deore CS-M6100-12 / 10-51 T |
|
Kolesá |
Shimano HB-MT410-B CL / 15x110mm Syncros 15x110mm, Shimano FH-MT410-B CL / 12x148mm / Micro Spline Syncros 12x148mm / Micro Spline, Syncros X-30SE / 32H / 30mm |
|
Plášte |
Schwalbe Wicked Will / 29x2.4" Performance / TLR / Foldable / Addix |
|
Hmotnosť v kg |
14,95 Kg |
| S | M | L | XL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° | ||||||||||||||
| B | HEAD TUBE LENGTH | 90.0 MM | 90.0 MM | 105.0 MM | 115.0 MM | ||||||||||||||
| C | TOP TUBE HORIZONTAL | 561.0 MM | 589.0 MM | 613.0 MM | 641.0 MM | ||||||||||||||
| D | STANDOVER HEIGHT | 759.0 MM | 767.0 MM | 778.0 MM | 801.0 MM | ||||||||||||||
| E | BB OFFSET | -43.5 MM | -43.5 MM | -43.5 MM | -43.5 MM | ||||||||||||||
| F | BB HEIGHT | 331.5 MM | 331.5 MM | 331.5 MM | 331.5 MM | ||||||||||||||
| G | WHEEL BASE | 1,145.0 MM | 1,174.0 MM | 1,205.0 MM | 1,236.0 MM | ||||||||||||||
| H | BB CENTER TO TOPTUBE CENTER | ||||||||||||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 415.0 MM | 440.0 MM | 490.0 MM | 540.0 MM | ||||||||||||||
| J | SEAT ANGLE | 75.7 ° | 75.9 ° | 76.4 ° | 76.7 ° | ||||||||||||||
| K | CHAINSTAY | 437.5 MM | 437.5 MM | 437.5 MM | 437.5 MM | ||||||||||||||
| L | REACH | 410.0 MM | 440.0 MM | 470.0 MM | 500.0 MM | ||||||||||||||
| M | STACK | 607.5 MM | 607.5 MM | 617.7 MM | 627.0 MM | ||||||||||||||
| N | STEM LENGTH | 50.0 MM | 60.0 MM | 60.0 MM | 70.0 MM | ||||||||||||||
| 0 | TRAIL | 107.0 MM | 107.0 MM | 107.0 MM | 107.0 MM | ||||||||||||||
| P | FORK LENGTH | 540.0 MM | 540.0 MM | 540.0 MM | 540.0 MM | ||||||||||||||
| Q | MAXIMUM SEATPOST INSERTION | 150.0 MM | 175.0 MM | 225.0 MM | 275.0 MM | ||||||||||||||
| R | CRANK LENGTH | 170.0 MM | 175.0 MM | 175.0 MM | 175.0 MM | ||||||||||||||
